CAD DESIGN

COMPUTER AIDED DESIGN

We use various 3d design programs depending on the requirements of a particular model, although the principle one is Matrix. As jewellery specific software, we can generate the weight calculations at any time of your design in different metals. Also, we can let you know the stone sizes required for every cad model we create.

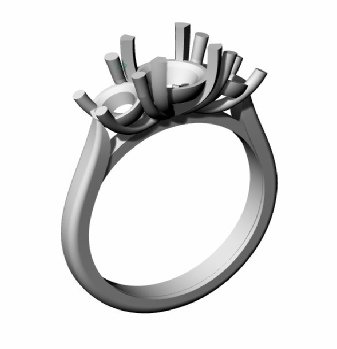

All of our files are well built to the highest standards. During the creation process, we ensure that the thicknesses and dimensions are accurate - an ability that only comes with years of experience both in CAD and at the bench. We take into consideration subsequent manufacturing processes such as whether the model is intended as a master or as a unique model. Furthermore, each piece undergoes a thorough checking process upon completion to eliminate unforeseen errors such as naked edges (a disconnect between surfaces).

Sometimes, we even test the pieces with a pre-print in resin to check the model is built correctly. In all cases, screenshots will be provided so that the client can be completely confident that the model looks as expected and, if needed, request any changes before it is finalised.

After you get in touch with details of your design, we will get back to you as soon as we can with a no-obligation quote for the 3D CAD file in stl , obj or any other format specified.

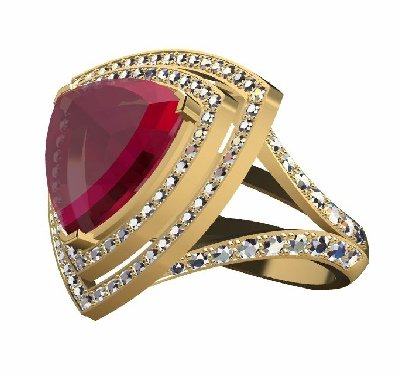

We can also provide renders if required. Prices for this service depends on difficulty and time to create the pieces and images.

Once we get the go-ahead, we aim to complete design jobs in 1-2 weeks, depending on the complexity of the model.

To receive a quote, please email your design to sales@galacreations.com.
